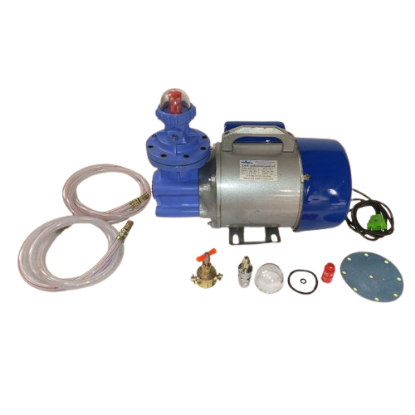

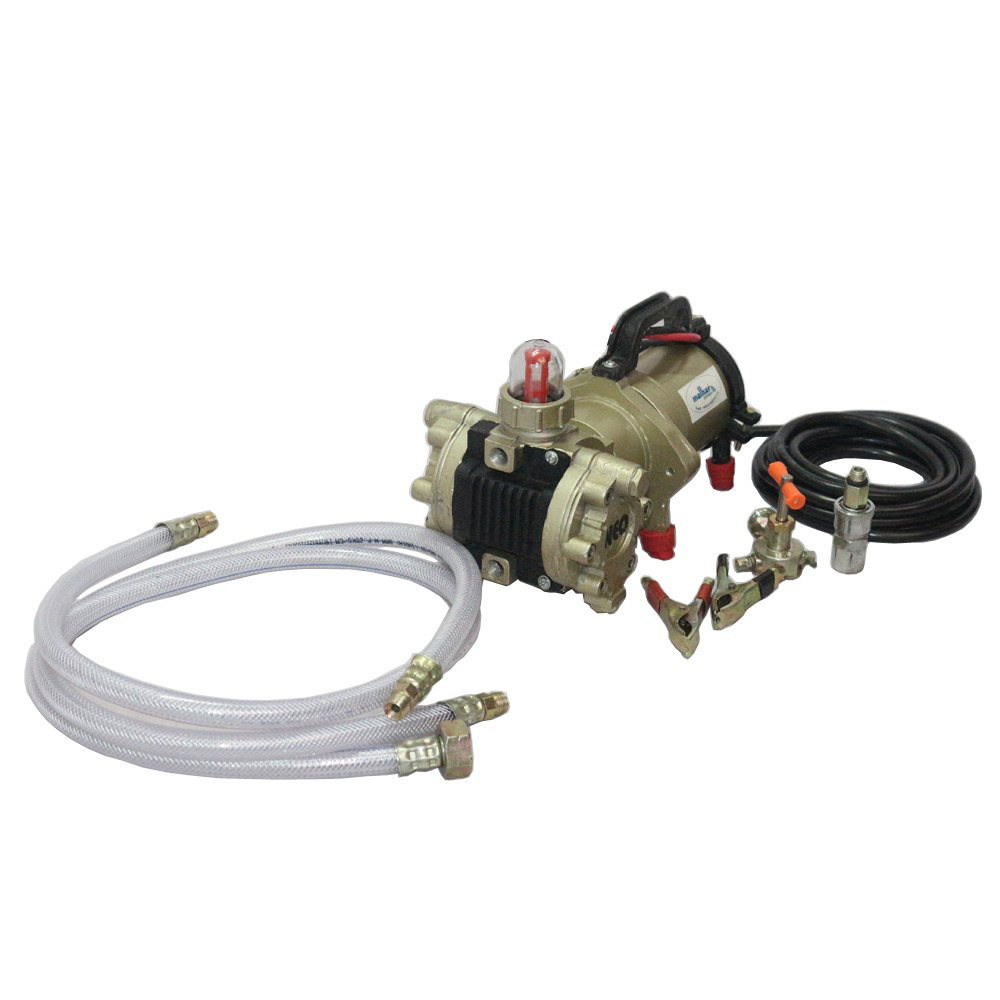

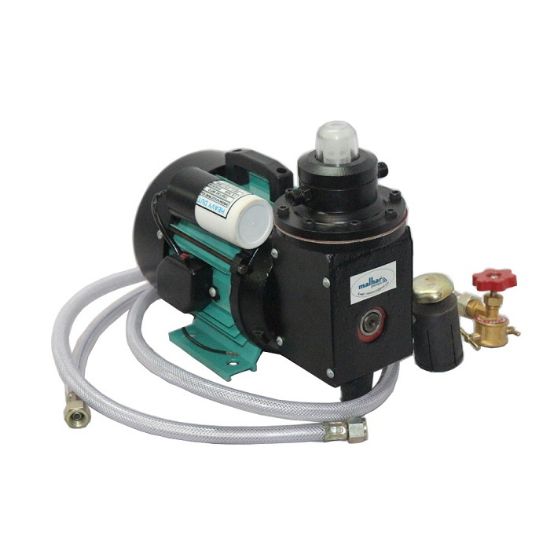

LPG Transfer Pump (DC BATTERY Type)-Suction x Delivery Sizes: ¼ x ¼ Inch, Capacity:15 kg/7 Minute

Product Specification

• Pump Type:- 12 Volt DC (Battery Operated ) LPG Diaphragm Pump
• Pump Make:- “MALHAR”
• Pump Model:- MD-DC-1
  Suction x Delivery Sizes:- ¼ ” x ¼ ”
• Pump Capacity:- 15 Kg/7 Minute I.E 2.14 Kg/Minute
• Maximum Pressure:- 5 Kg/cm2
• Pump Weight:- 8 Kg approx
• Material Of Construction:- Standard Cast Iron Construction
• DC Motor Specifications:-12 Volt DC PMDC Motor suitable for above pump
• Take approximately 3 ampere current.SCOPE OF SUPPLY:-DC lpg Pump With Suction and Delivery Pipes with Valve
• extra Diaphragm.YOUTUBE LINK:https://youtu.be/mvPNIY_oRQA

Application

LPG is a fuel gas that is utilised in vehicles, kitchen appliances, and home heating systems. It is increasingly used as an aerosol propellant and a refrigerant in place of chlorofluorocarbons in an effort to decrease damage to the ozone layer. When specifically used as an automobile fuel, it is more frequently referred to as auto gas or even just plain gas. LPG is available in a variety of mixtures, the most common of which are ones that are mostly both propane and butane (C 3H 8 and C 4H 10, respectively). In the northern hemisphere, the combinations contain more propane in the winter and more butane in the summer.
