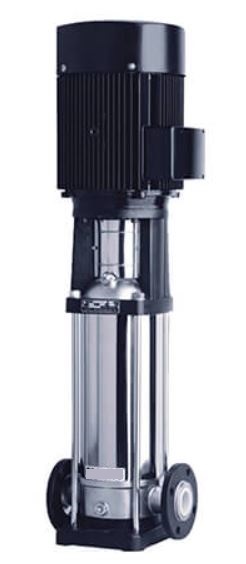

Vertical Multi Stage Pump with Motor-Capacity Range (4-12 M3/HR)

 Product Specification

* Capacity Range:4-12 (M3/HR)

*  TDH Range:54-84 MTR

*  Bottom Casing:Cast Iron

*   Diffuser MOC:CF8E (SS304)

* Impeller MOC:CF8E (SS304)

* Shaft MOC:SS

* RPM:2P-2900

*  Motor Power:3.7 KW/5HP

*  Motor Type:Standard V1, 50 Hz, 440 V

* Sealing:Mechanical Seal

*  Pump Output Connection:Flange

*  Pipe Size:50 X 50 MM

Instructions to Quote:

1.Appropriate partner flanges, reducers, and extenders shall be given if the party is unable to supply the pump with the precise suction/delivery sizes as specified in the PR.

2. The provision of material test certificates.

3. A certificate of warranty or guarantee must be presented.

4. Materials must be supplied in the right packaging and labelling.

Application

The vertical multistage pumps are intended for use in industrial, commercial, and urban settings such as high-rise residences, malls, hospitals, business operations, municipal water supply, and irrigation. The pumps are of an in-line design and may be maintained in place.
