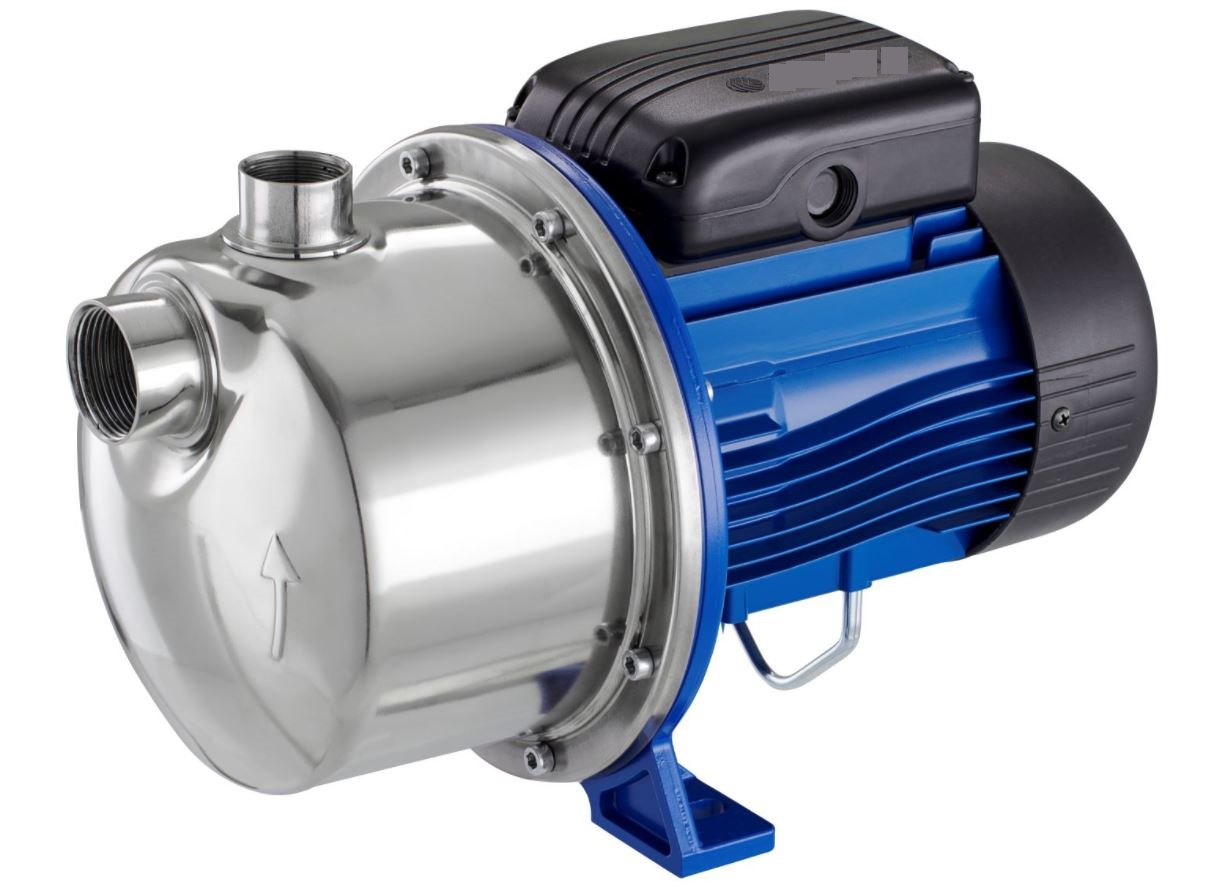

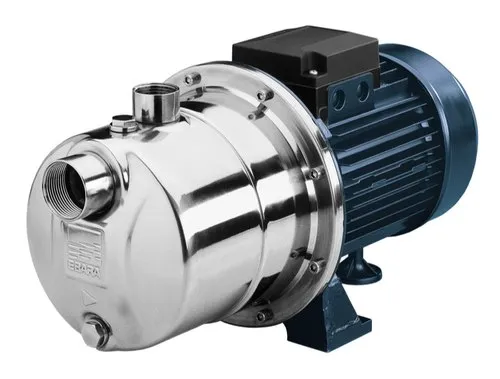

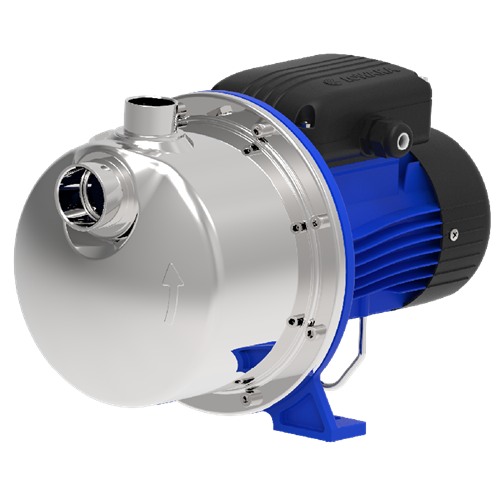

Self Priming Centrifugal Pump-2760RPM, Dia Size-7

Product Specification

* Standards:IS 5120

*  Pump Type:Self Priming Mono Block Pump

*  Size (Dia) of Solids in Liquid to be Handled:7

* Suction Pipe Size (Nominal):40

*  Delivery Pipe Size (Nominal):40

* Speed in RPM:2760, Pump Shaft:Carbon Steel

* Impeller Material:Bronze

* Motor Body:Cast Iron

* Motor Type:AC Motor ISI Marked 1 Phase, 230 V ± 10%, 50Hz ± 3% Hz

* Motor Enclosure:Totally Enclosed Drip Proof

* Class of Insulation:B/F Class

* Degree of Protection:IP 55

Application

Since solid particles are regularly encountered while using self-priming pumps to empty sumps, the pump impeller and seal need to be able to handle them. It will be necessary to use an impeller with extensive passageways or one that is semi-open for passing solids.
