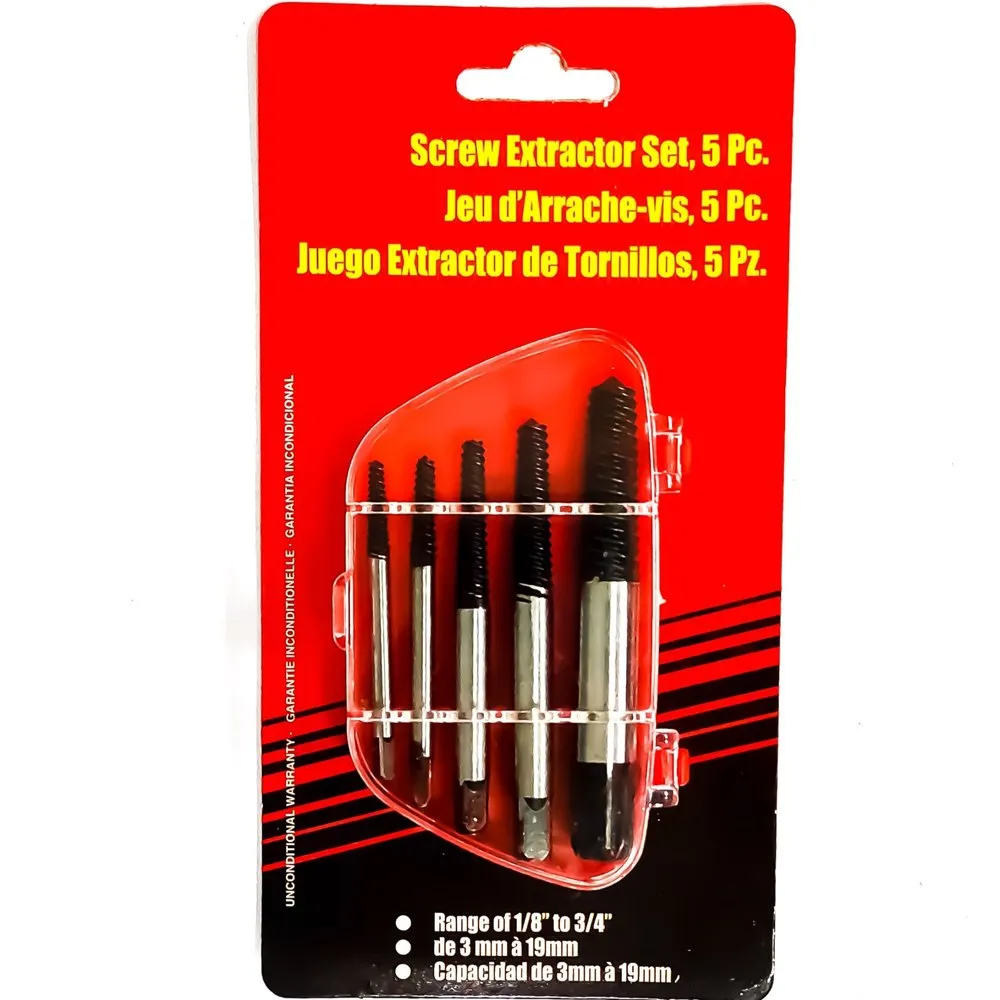

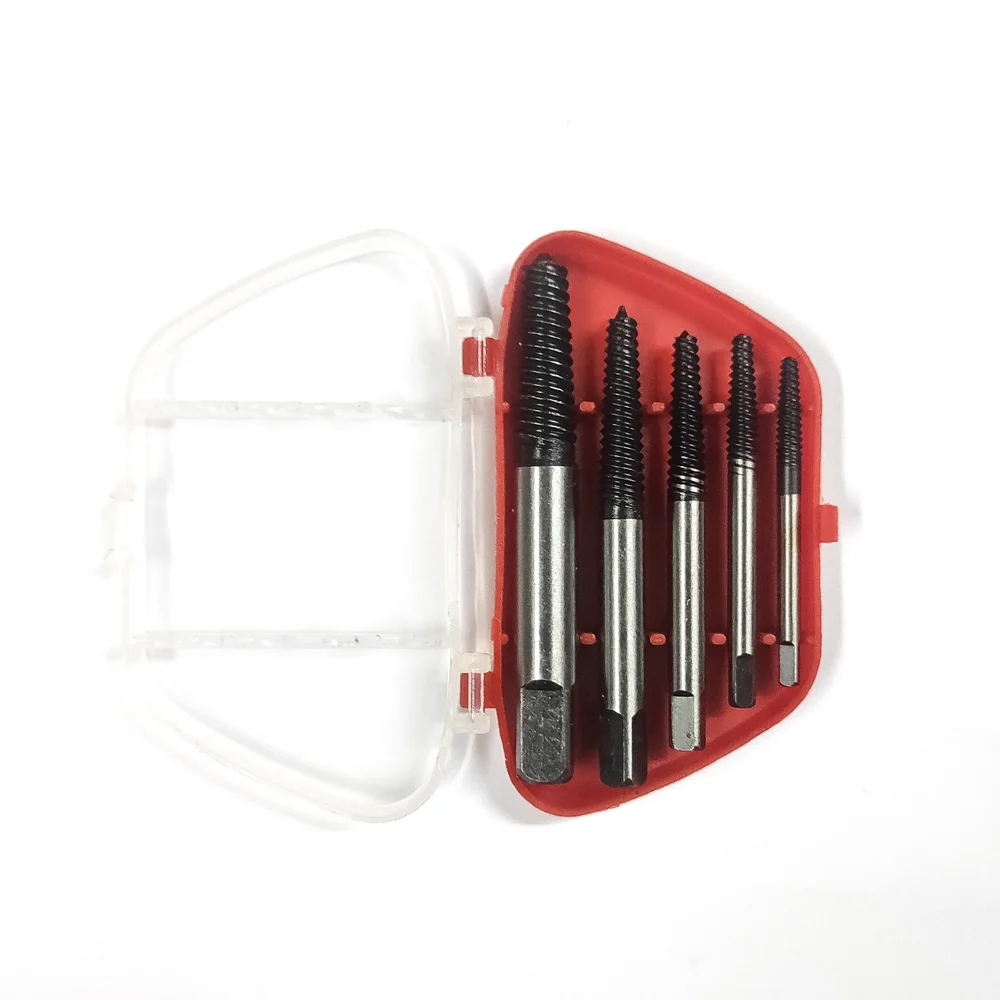

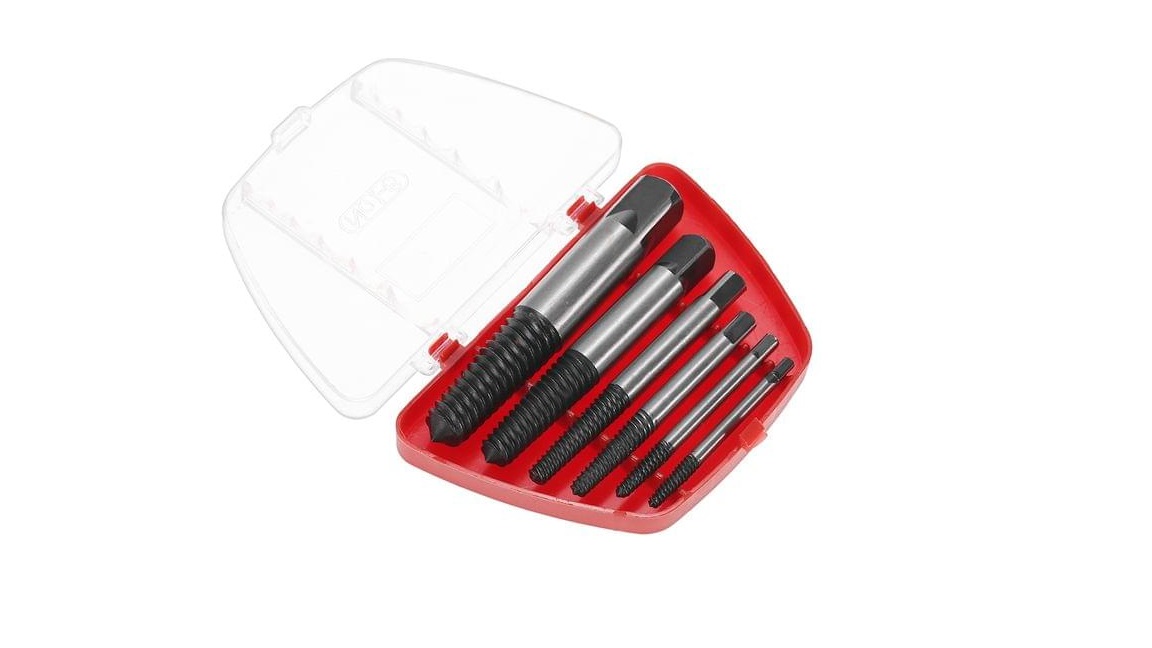

Screw Extractor-5 Pc Set

Product Specification

*Material:Carbon Steel

 *Hardness:45-48 HRC

* Uses:Extracting Broken Screw and Studs

* Mid Tensile Strength Screw and Studs

* Contents (6 PCS):(1) For Screw 1/8 to 1/4 Inch or M3 to M6

* For Screw 1/4 to 5/16 Inch or M6 to M8

* For Screw 5/16 to 7/16 Inch or M8 to M11

* For Screw 7/16 to 9/16 Inch or M11 to M14

* For Screw 9/16 to 3/4 Inch or M14 to M18

* For Screw 3/4 to 1 Inch or M18 to M25

Application

A screw extractor is a tool for removing broken or seized screws. There are two types: one has a spiral flute structure, commonly called an easy out after the trademarked name EZ-Out; the other has a straight flute structure.

A tool extractor is a device that is desired to remove various types of pins, screws, dowel pins, bolts and studs that cannot be easily removed using other means. Extractors of this type vary in size and shape, making it possible to purchase extracting equipment that is ideal for a specific purpose.

One of the most common examples of a tool extractor is known as a screw extractor. This device often resembles a pencil, with one end tapering to a point. In situations where the screw head is stripped or has broken off, the sharp point can be lightly tapped into the remaining body of the screw, then slowly turned to loosen and dislodge the damaged component.
