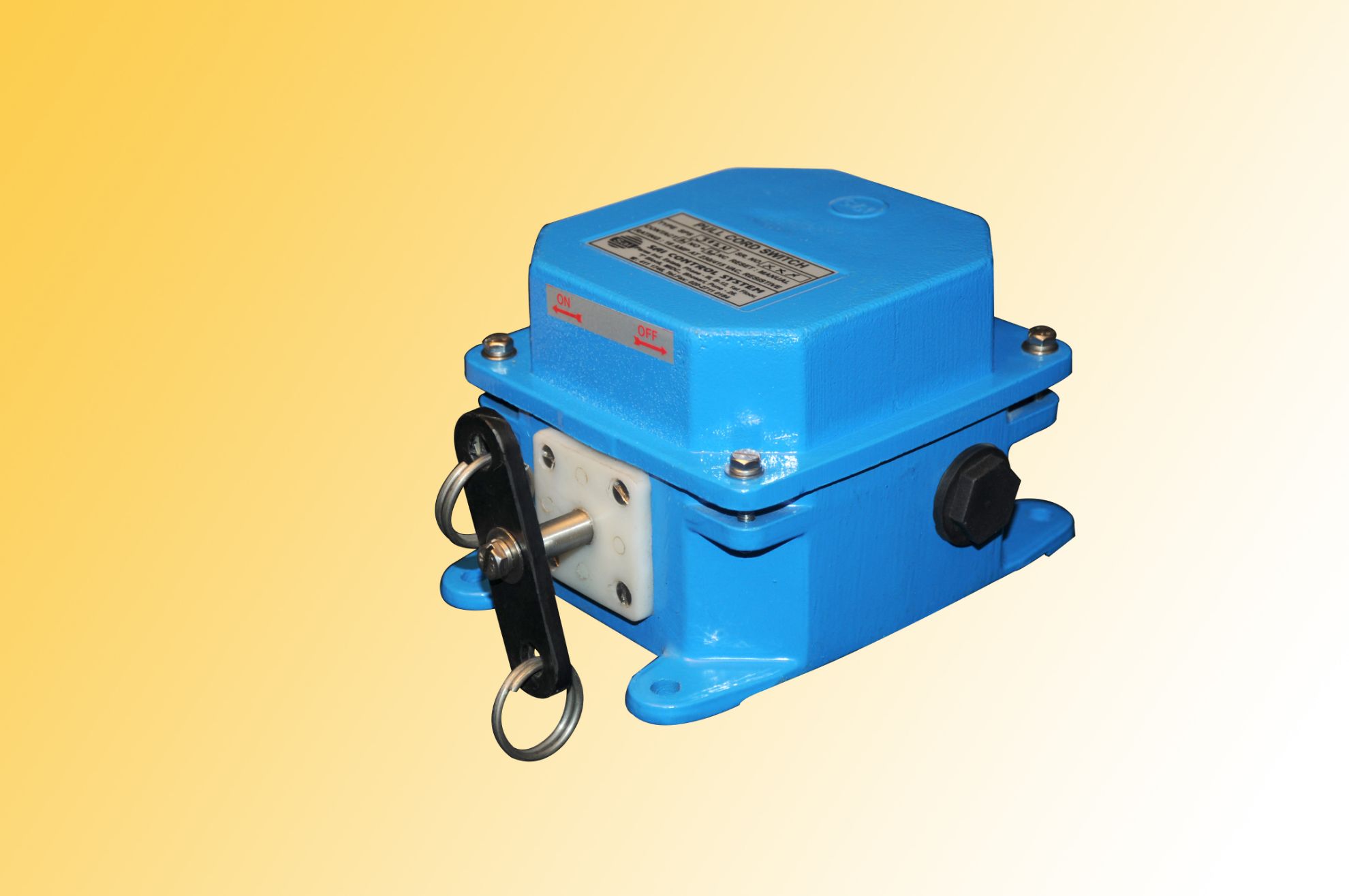

Pull Cord Switch , Model no - SPS 302N

Product Specification

• Enclosure : Cast Aluminium with powder coating
• Grade of protection - IP65
• Contact - 2 NO + 2 NC
• Contact Rating - 10 Amps @ 110 / 220 VAC
• Cable entry - 2 Nos. 19 mm 3/4 inch with plastig plug

Application

Pull Cord Switch can be used by an operator to stop the belt conveyor when an accident occurs. Since the pull cord switch is a safety switch used to stop the belt conveyor, they are installed or mounted on the side of the conveyor with the pulling rope. Since the pull cord switch is a safety switch used to stop the belt conveyor, they are installed or mounted on the side of the conveyor with the pulling rope. If the length of the conveyors is too long then multiple pull cord switches are installed in a way that the pulling rope can be pulled on the conveyor at any point.
