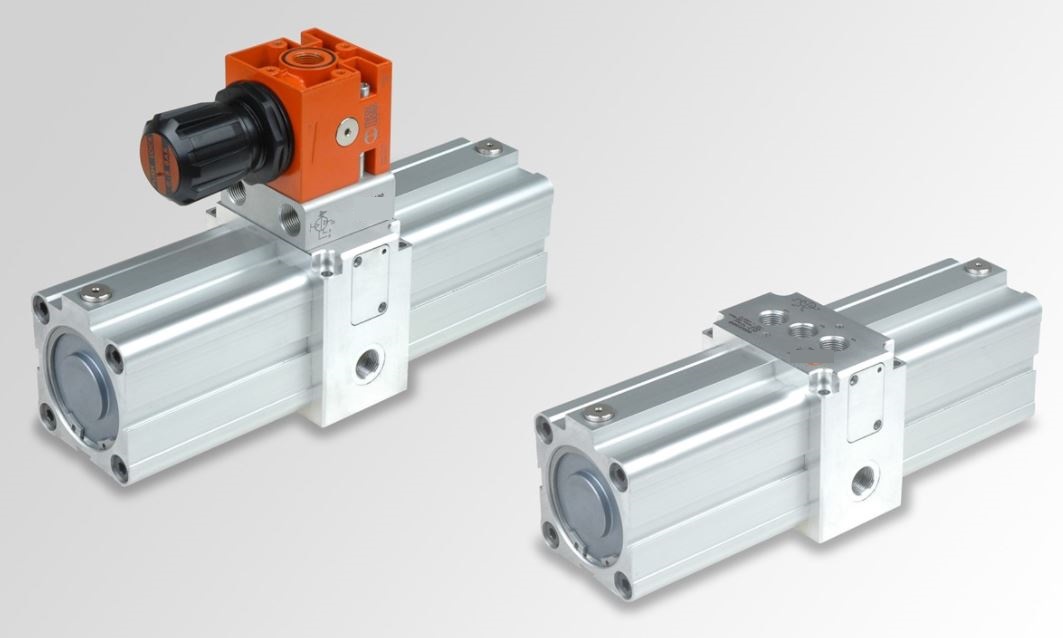

Air Pressure Booster-Piston Diameter (63 MM)

Product Specification

 * Piston Diameter:63 MM

*  Installation Position:Arbitrary

*  Construction Setup:Double Piston Pressure Transducer

*  Pressure Display:G1/8 Prepared

* Output Pressure 2:4-10 Bar

*  Operating Pressure:2-8 Bar, Pressure Regulation Range:4-10 Bar

*  Input Pressure 1:2-8 Bar

*  Operating Medium:Compressed Air to ISO 8573-1:2010 [7:3:4]

* Bearing Temperature (°C):5-60 Deg C

*  Ambient Temperature:5-60 Deg C

* Product Weight:6 KG

*  Fastening Type:With Female Thread

* Pneumatic Connection 1:G3/8

*  Pneumatic Connection 2:G3/8

*  Pneumatic Connection 3:G3/8

*  Material Information:RoHs CompliantMake: Festo

*  Model No. DPA-63-10 or Equivalent

Application

The purpose of the Air Pressure Booster is to raise the pressure in air supply lines. The DPA performs as a double piston compressor since it has two connected pressure chambers. The DPA just requires pressurised air as an external source of energy.
