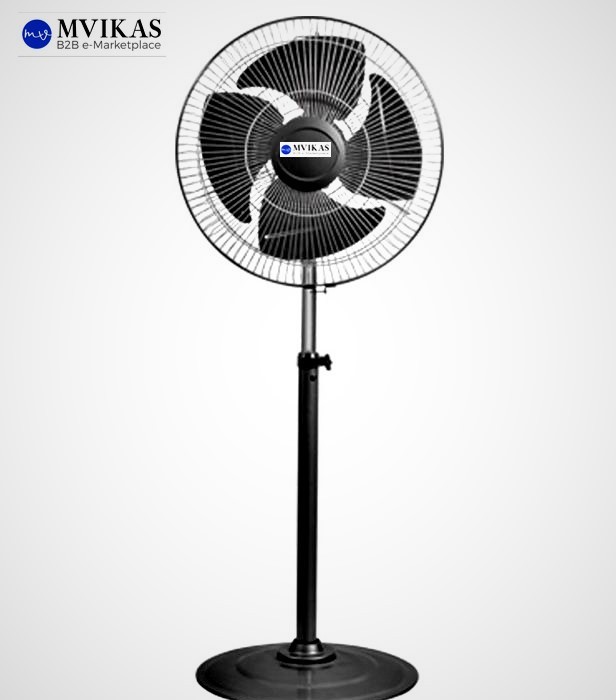

Pedestal Type Man Cooler Fan-24" (Inch) (*Customisation Available*)

  Product Specification

• Size:24 (Inch), 610 MM
• Material:CI Casting Heavy Base
• M. S. Pipe
• Aluminium Casting Impeller
• M. S. Guard at both side of Fan
• Complete Paint along with Motor Starter
• 20 Mtr. CU Cable
• Voltage:415 V
• Phase:3 (Triple)
• Speed:1440 RPM
• Frequency:50 Hz
• Motor:0.75 KW (1HP)
• Pole:4 Pole, Air Deliery:28000M3/Hr
• Protection/Standards:IP 55
• S1 Insulation Calss F

Application

Air coolers, known as evaporative cooling fans and swamp cooler fans, are efficient at cooling down high square footage areas quickly and cost-effectively. In order to operate, these fans need a water supply equipped to them. Once they are running, the fan pulls water from the supply and through the fan itself. Once the water reaches the blades, the rotation breaks the water into mist made of the smallest water particles. Since the water particles are tiny, they instantly evaporate when they hit the air. While evaporating, the mist cools down the warm temperature in the air.

The benefit of using evaporative cooling fans is the instantaneous evaporation makes them safe to use in areas where water should not be present. Wood and delicate machinery are safe from damage.
