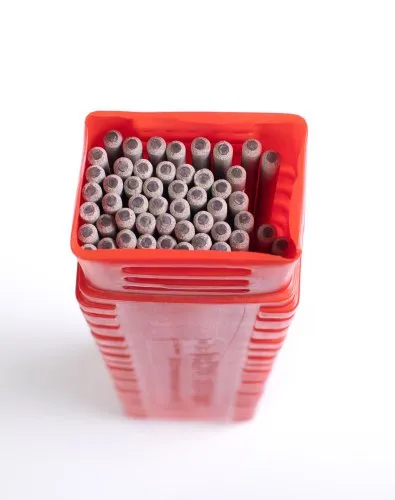

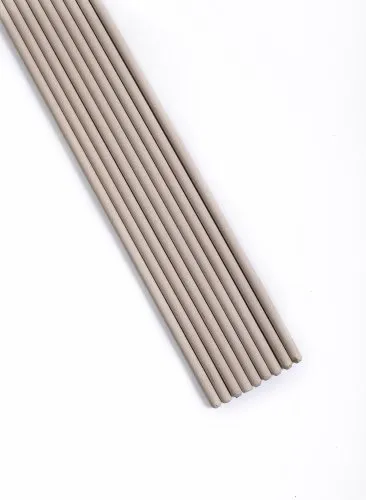

Mild Steel Electrode-(Supabase X Plus)-Size:2.50X350MM (*Customisation Available*)

Short Description:
MIG welding is an arc welding process in which a continuous solid wire electrode is fed through a welding gun and into the weld pool, joining the two base materials together. A shielding gas is also sent through the welding gun and protects the weld pool from contamination. In fact, MIG stands for metal inert gas.
Manufacturer Ador
Availability In stock
Manufacturer part number Supabase X Plus (E 7018)
Place Of Origin India
Return Returnable Product
1 week
Call for pricing
This product has a minimum quantity of 4

Product Specifications :

  • Size: 2.50 x 350mm (diameter x length)
  • Suitable for welding medium to heavy thickness mild steel plates and structures
  • Brand Name: Supabase X Plus
  • Coated with a special low hydrogen iron powder that provides excellent weld quality and minimal spatter
  • Provides superior arc stability, making it easy to control and operate
  • Ideal for use in all welding positions, including flat, horizontal, vertical, and overhead
  • Tensile Strength: 52-58 kg/mm²
  • Yield Strength: 42-48 kg/mm²
  • Elongation: 22-28%
  • Impact Strength: 70-80 Joules (at 27°C)
  • Coating Type: Low Hydrogen Iron Powder
  • Coating Thickness: 0.8-1.2mm
  • Polarity: DC Reverse (DC+) or AC
  • Recommended Base Metals: Mild Steel

Applications :

Welding electrodes are one of the most commonly used materials in numerous manufacturing, construction, automobiles, and sometimes in even domestic applications. Usually constructed with highly conductible metal wires coated with specialized chemicals, they support the high-temperature welding arcs and form the base material for welding joints or melting activities for metal fusion purposes. It’s not a rare sight to pass by construction shops or automobile repair and maintenance garages without spotting two-three people wearing masks and working with an eye-numbing glare on some metal plates.

Well, not all welding electrodes are the same. There are a lot of variations flocking the market and usually, the electrode used depends upon the material to be welded, the procedure and the infrastructure to be utilized, and the end output desired. Here are some of the most commonly used of the entire electrode lot

These widely used, flexibly applied electrodes primarily consist of two segments—the core material (wire, rod, metal, etc) and the coating on the same. Mild steel electrodes are usually coated with high quality but low carbon steel deposits. These electrodes have considerable tensile, yield strength and can sustain a long-standing arc and are mostly applied in the welding processes of mild steels, galvanized and low alloy steels. Industries such as in manufacturing, automobile repairing usually use mild steel electrodes.
