Short Description:
A high voltage, low current DC charge is used by insulation testers to measure the resistance in wires and motor windings in order to find current leakage and defective or damaged insulation, which can result in arc faults, blown circuits, and the possibility of electrical shock or fire.

Manufacturer MECO

Availability In stock

Manufacturer part number 907BA

Place Of Origin India

Return Returnable Product

1 week

Price: ₹ 2,970.00

Old price: ₹ 3,267.00

GST @18% Inclusive Price: 3504

Qty:

Product Details:

Power	9V (6 x 1.5V AA) Battery
Operating Temperature	0 Degree to 50 Degree C
Brand	Meco
Condition	New

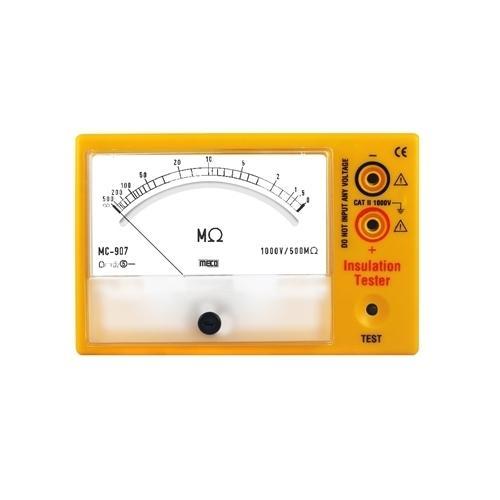

Model	MC-907BA
Range	0-500MOhms
Test Voltage DC	1000 V
Accuracy	+- 5% of Indicated Value at 27 Degree C +- 5 Degree C
Relative Humidity	80% Maximum
Dimensions	144.5 x 95 x 72.5 mm (approx.)
Weight	438.6 gms Including Battery (approx.)
Dielectric Strength	3.5 KV @ 50Hz for 1 min. between Input Terminals & Case
Insulation Resistance	More than 50M Ohm at 500V between Circuit & Case
Storage Temperature	-10 Degree C to 60 Degree C

Features:

Single Person Push Button Operation
High Accuracy 5% of Indicated Value in Effective Range
Scale Length : 80 mm (approx)
Terminal Voltage : > 85% of Rated Voltage for Insulation Resistance
Measurement from 10% to 100% of the Insulation Resistance Range
ABS Resin Yellow Case with Polycarbonate Meter Front Cover
Meets Requirement of IEC 61010, Installation Category II, 1000 V Phase Earth
Designed to Generally Confirm to IS 10656-1983
7 Models with various Voltage to MOhm Ranges

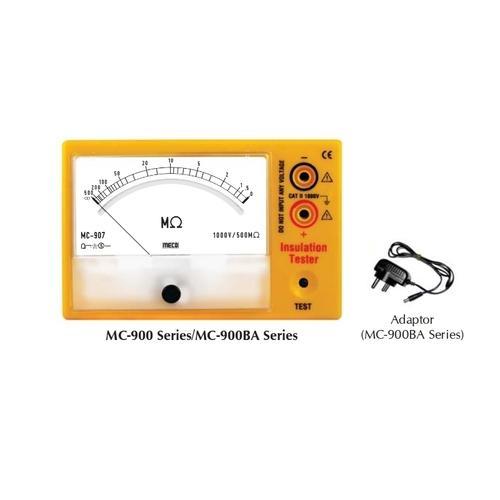

Battery Adaptor (Optional) for MC-900BA Series

Applications:

Electrical Equipment (Motors, Transformers, Machine, etc)
Cables for Communication Networks
Industrial, Commercial & Residential Installations
Electrical Cables for Distribution Networks
House Hold Appliances (Washing Machines, Mixer, Toaster etc.)
