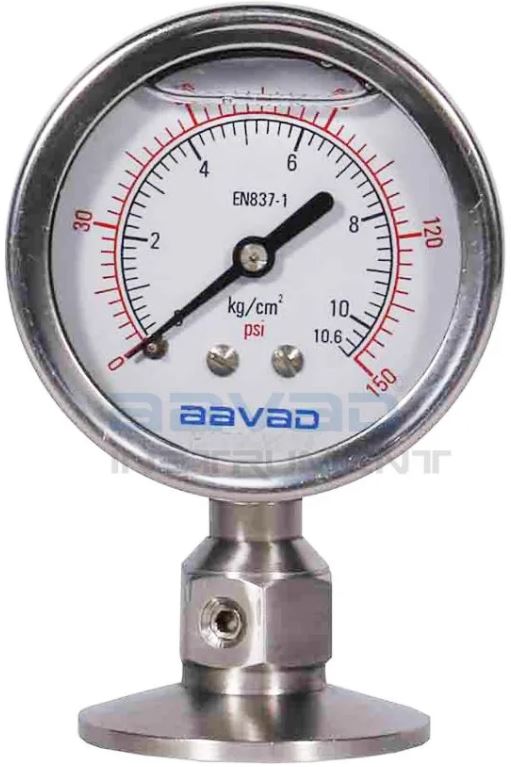

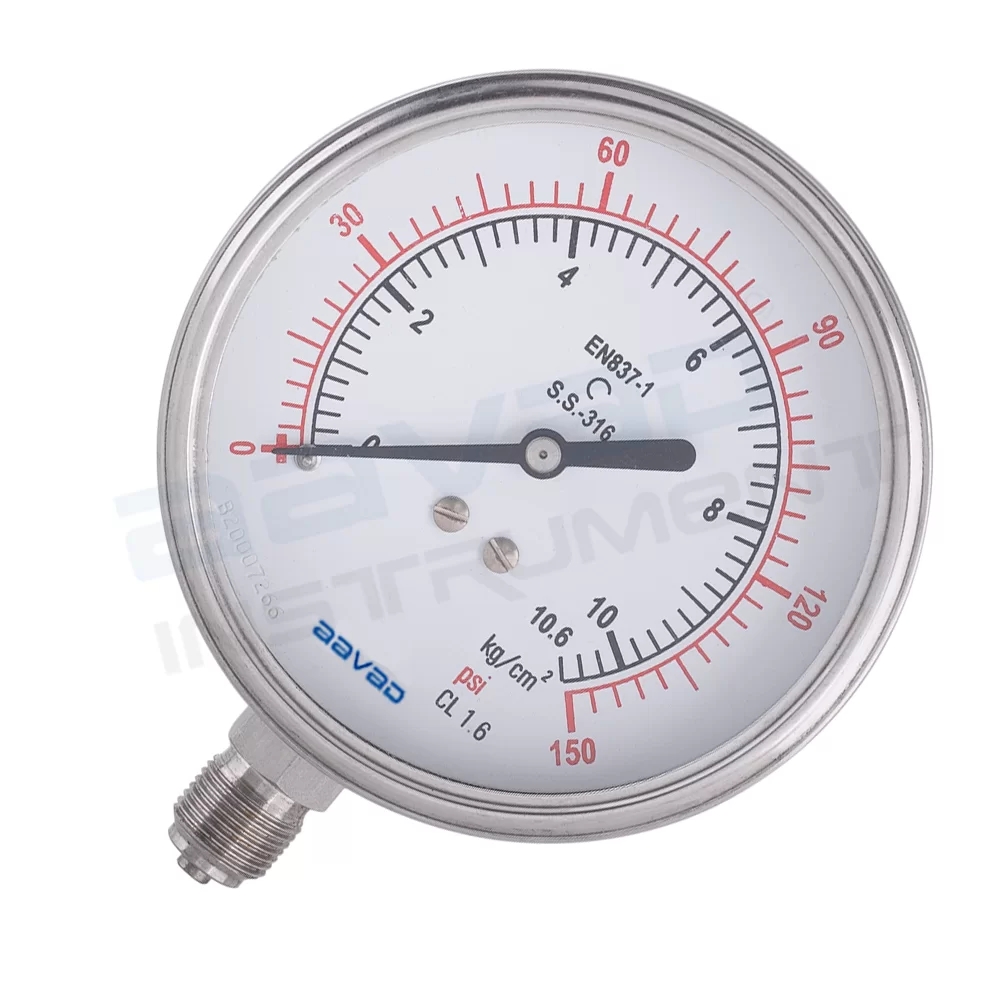

Industrial Pressure Gauge-Dial Size:100MM, Range:0 to 10.6 Kg/cm2 (*Customisation Available*)

Specifications :

* Make: Aavad

* Dial size: 100 mm

* Range: 0 to 10.6 kg/cm2

* Case & Bezel: SS 304, Bayonet type

* Socket: SS 304

* Movement: SS 304

* Sensing material: SS 316, Bourdon tube

* Dial: Aluminium, Black markings on white background

* Pointer: Aluminium, Black

* Window: Acrylic / Shatterproof

* Accuracy: +/- 1.0% of FSD

* Over-range protection: 130% of FSD

* Connection: 1/2″ BSP (m), SS 304

* Mounting: Direct bottom connection

* Joint: Argon welding

* Glycerine filled: No

Applications :

A pressure gauge is a measuring instrument used to measure the level of pressure in a liquid or gas, across industries. It is specified by the force that the fluid would exert, when at rest, on a unit area, such as pounds per square inch or newtons per square centimeter.Gauge pressure measuring devices are the most widely used pressure measuring instruments for industrial purposes, particularly in power, refineries, chemical, petrochemical, pharmaceutical, food, refrigeration, air-conditioning and sanitation industries.
