Short Description:
The fiber optic power meter is a unique light meter that gauges the amount of light emanating from the fiber optic cable's end. The power meter must be able to measure the light over the required power range and at the correct wavelength.

Manufacturer Proskit

Availability In stock

Manufacturer part number MT-7603

Place Of Origin India

Return Returnable Product

1 week

Price: ₹ 33,563.00

Old price: ₹ 35,022.00

GST @18% Inclusive Price: 39604

Qty:

Product Specification

* Model Name/Number - MT-7603

*Brand - Proskit

* Detector Type - InGaAs

* Optical Connector - FC / PC

* Measurement Range - (+8~ -70dBm)

* Measurement Wavelengths - Multiple mode:850nm/1300nm/

* Single mode - 1310nm/1490nm/1550nm/1625nm

* Resolution - 0.01dB

* Accuracy - (±0.2dB)

* Measurement Linearity - (±2.0%)

* Display Resolution - (+8~ -60dBm: 0.01dB ; -60~ -70dBm: 0.1dB)

* Power Display Units - dBm, mW, uW, nW,

* Commuication connector - USB

* Data storage - 1000 group

* Battery Capacity - > 160 hours

* Modulation Detection - 270Hz,1kHz, 2kHz

*Visual Fault Locator - 1mW

* Autopower Off - 10 min (can be cancelled)

* Size - 170mm×97mm×38mm

* Weight - 330g

Application

An optical power metre (OPM) is a testing tool used to precisely gauge the strength of fibre optic hardware or the strength of an optical signal transmitted through a fibre cable. As the optical signal travels through the optical media, it aids in calculating the power loss that occurs.

Suggestion/Complaint

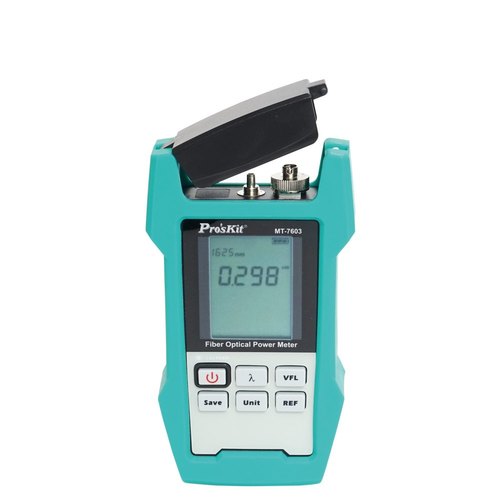

FIBER OPTICAL POWER METER - MODEL NAME:MT-7603
