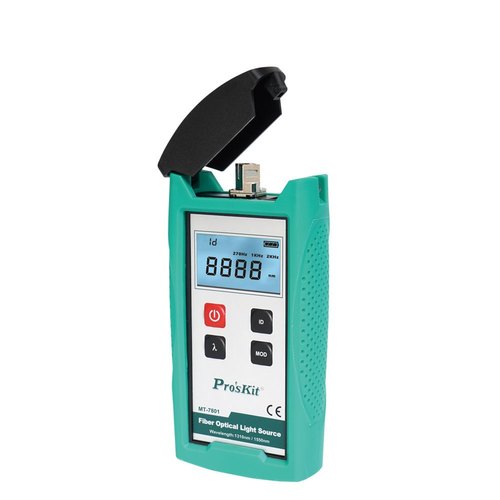

FIBER OPTICAL LIGHT SOURCE - MODEL NAME:MT7801

Product Specification

* Brand - Proskit

* Model Name/Number - MT7801

* Wavelength - 1310/1550nm±10nm

* Output Power - >-5dBm

* Modulation - 270Hz, 1kHz,2kHz

* Storage temperature - (-20~+70°C; <90%RH)

* Operating temperature - (-10~+60°C; <90%RH)

* Dimension - 165× 80 × 35mm

* Power source - 2 x 1.5V AA batteries (not included)

* Weight - 280g

* OPTIC connector - SC/PC

Application

 Fiber optical light connect the transmitting end of the test cable to the optical light source. Attach the test cable's other end to the power metre. Turn on the source, then choose the desired wavelength for the loss test. Turn on the metre, choose the "dBm" or "dB" range, and then choose the desired wavelength for the loss test.
