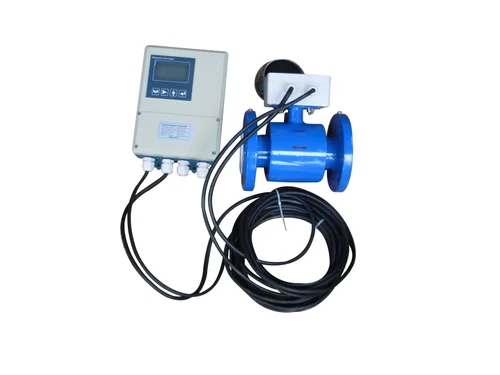

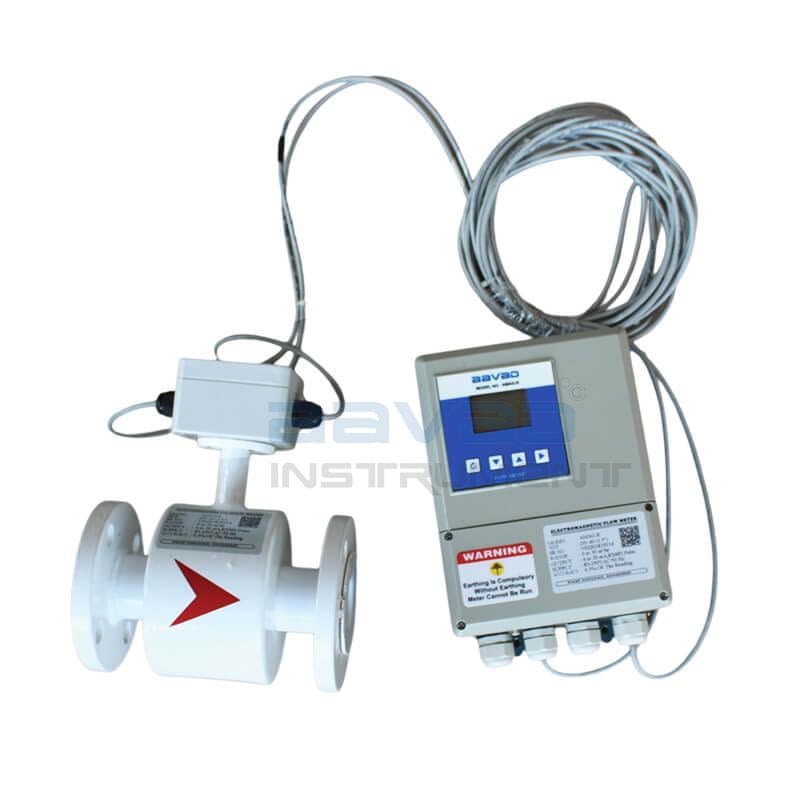

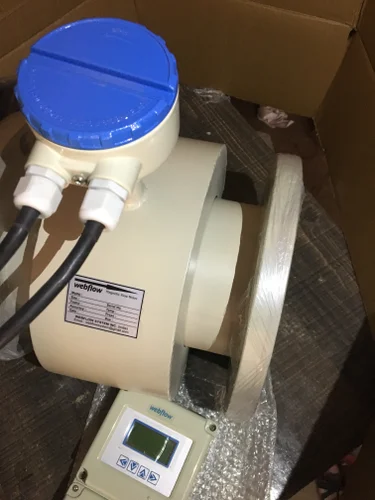

Electromagnetic Flow Meter (Remote Display)-Line Size:80MM (*Customisation Available*)

Specifications :

• Model:AMAG-RService:Pls specifyConductivity:≥ 10 Μs/CmOutput:4-20 Ma Isolated
• Rs-485, PulseDisplay:Lcd 16×4 line with 5 meter cable 9 digit totalized flowAccuracy:+ /-0.5 % of readingRepeatability:+ /-1%Process temperature:0°C-150℃Process pressure:Max:10 Kg/cm2Internal:
• PTFE LiningElectrode moc:SS 316Power supply:230VacResponse time:0.3 SecProcess connection:Asa 150 flanged MSOperating temperature:55℃Electronics housing:Die cast aluminum
• IP 65Empty pipe detection:YesBack light LCD:YesVelocity:0.2 to 10 m/sMeasuring unit:Selectable Kg/H,M3/H,L/H,L/M,L/S,Kg/M,Kg/SLine Size:80 MM

Applications :

The electromagnetic flowmeter uses Faraday's Law of electromagnetic induction to measure the process flow. When an electrically conductive fluid flows in the pipe, an electrode voltage E is induced between a pair of electrodes placed at right angles to the direction of magnetic field.

Electromagnetic Flow Meters, simply known as mag flow meter is a volumetric flow meter which is ideally used for waste water applications and other applications that experience low pressure drop and with appropriate liquid conductivity required. Magnetic flow meters works based on Faraday’s Law of Electromagnetic Induction. According to this principle, when a conductive medium passes through a magnetic field B, a voltage E is generated which is proportional to the velocity v of the medium, the density of the magnetic field and the length of the conductor.
