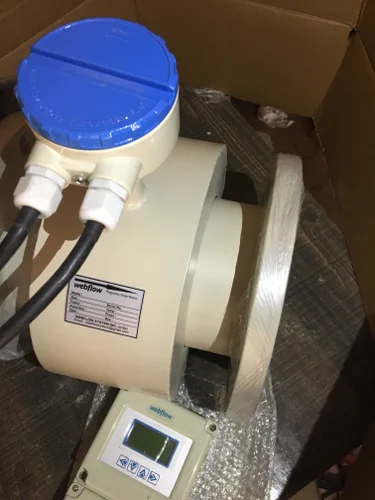

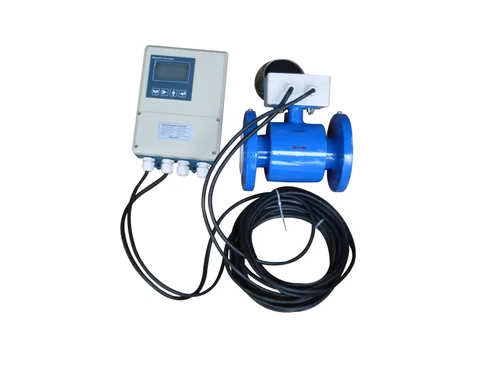

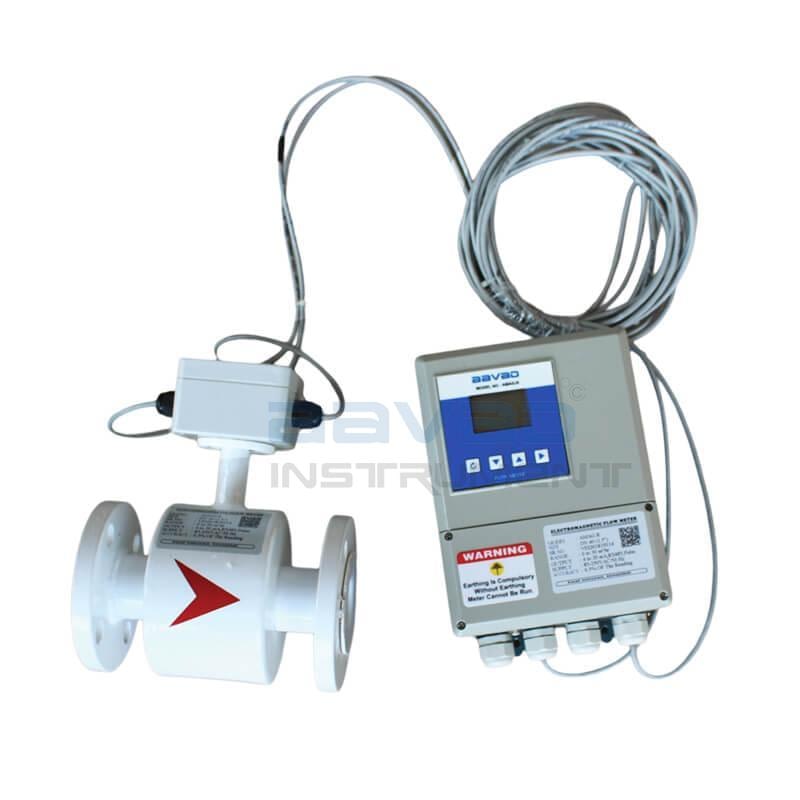

Electromagnetic Flow Meter (Remote Display)-Line Size:50MM (*Customisation Available*)

Specifications :

• Model:AMAG-RService:Pls specifyConductivity:≥ 10 Μs/CmOutput:4-20 Ma Isolated
• Rs-485, PulseDisplay:Lcd 16×4 line with 5 meter cable 9 digit
• totalized flowAccuracy:+ /-0.5 % of reading Repeatability:+ /-1%Process temperature:0°C-150℃Process pressure:Max:10 Kg/cm2Internal:
• PTFE LiningElectrode moc:SS 316Power supply:230VacResponse time:0.3 SecProcess connection:
• Asa 150 flanged MSOperating temperature:55℃Electronics housing:Die cast aluminum
• IP 65Empty pipe detection:YesBack light LCD:YesVelocity:0.2 to 10 m/sMeasuring unit:Selectable Kg/H,M3/H,L/H,L/M,L/S,Kg/M,Kg/SLine Size:50 MM

Applications :

They are useful in quantification of potable water. They can be used at construction sites of the flow measurement of slurries. They are useful at petroleum plants to measure the flow rate of combustible fuels. They are useful in measuring displacement of explosive liquids, paints, and abrasives

Electromagnetic Flow Meters, simply known as mag flow meter is a volumetric flow meter which is ideally used for waste water applications and other applications that experience low pressure drop and with appropriate liquid conductivity required.
