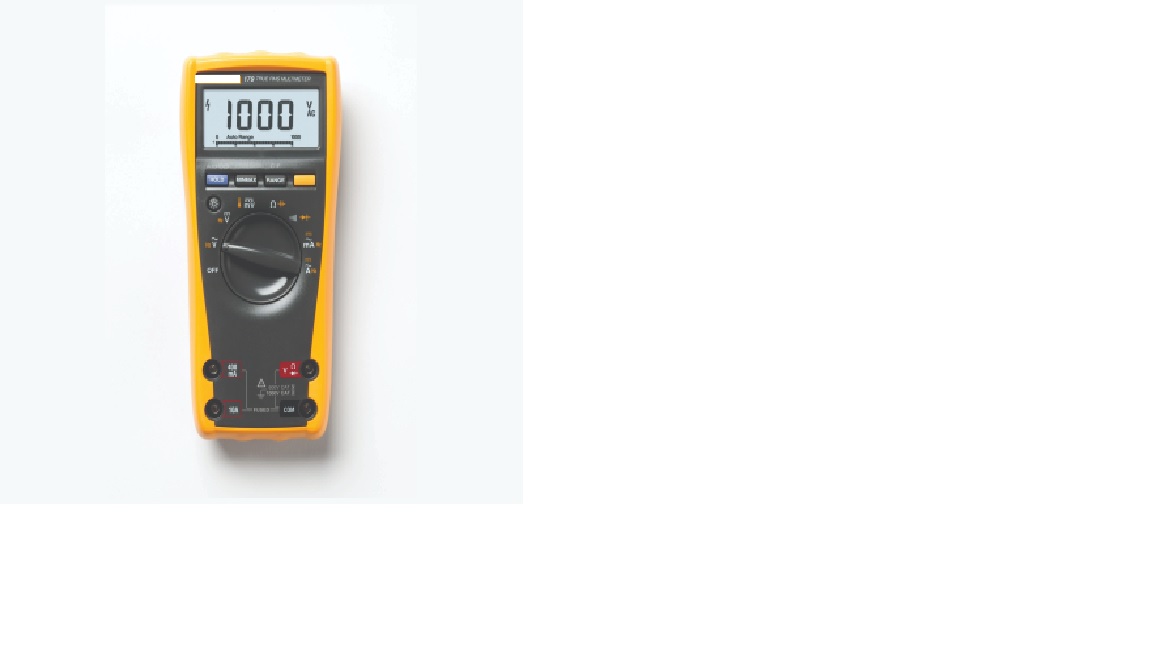

Digital Multimeter-10A LCD Display with 3 and 1/2 Digit

Product Specification

• True RMS digital Industrial Multimeter:Equivalent model to the specification is Fluke 87-V Identify complex signal problems fast Supports accurate measurements on VFDs using a low-pass filter Captures intermittent as fast as 250 µS with Peak CaptureVoltage DCMaximum
• Voltage : 1000 VAccuracy : ±(0.05% + 1)Maximum resolution : 10 µVVoltage ACMaximum voltage : 1000 VAccuracy : ±(0.7% + 2) True RMSAC bandwidth : 20 kHz with low pass filter; 3 dB @ 1 kHzMaximum resolution : 0.1 mVCurrent DCMaximum amps : 10 A (20 A for 30 seconds maximum)Amps accuracy : ±(0.2% + 2)Maximum resolution : 0.01
• µACurrent ACMaximum amps : 10 A (20 A for 30 seconds maximum)Amps accuracy : ±(1.0% + 2) True RMSMaximum resolution : 0.1 µAResistanceMaximum resistance : 50 MΩAccuracy : ±(0.2% + 1)Maximum resolution : 0.1 ΩCapacitanceMaximum capacitance : 9,999 µFAccuracy :±(1% + 2)Maximum resolution : 0.01
• nFFrequencyMaximum frequency : 200 kHzAccuracy : ±(0.005% + 1)Maximum resolution : 0.01 HzDuty cycleMaximum duty cycle :99.9%Accuracy :±(0.2% per kHz + 0.1%)Maximum resolution : 0.1%Temperature measurement : –200.0 °C – 1090 °C –328.0 °F – 1994.0 °F, excluding probe80 BK temperature probe : –40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greaterConductanceMaximum conductance : 60.00 nSAccuracy : ±(1.0% + 10)Maximum resolution : 0.01 nSDiodeRange : 3 VResolution : 1 mVAccuracy : ±(2% + 1)Duty cy

Application

A digital multimeter is a test instrument used to measure two or more electrical values, primarily resistance, current, and voltage (in volts and amps) (ohms). For technicians working in the electrical and electronic industries, it is a typical diagnostic tool.
