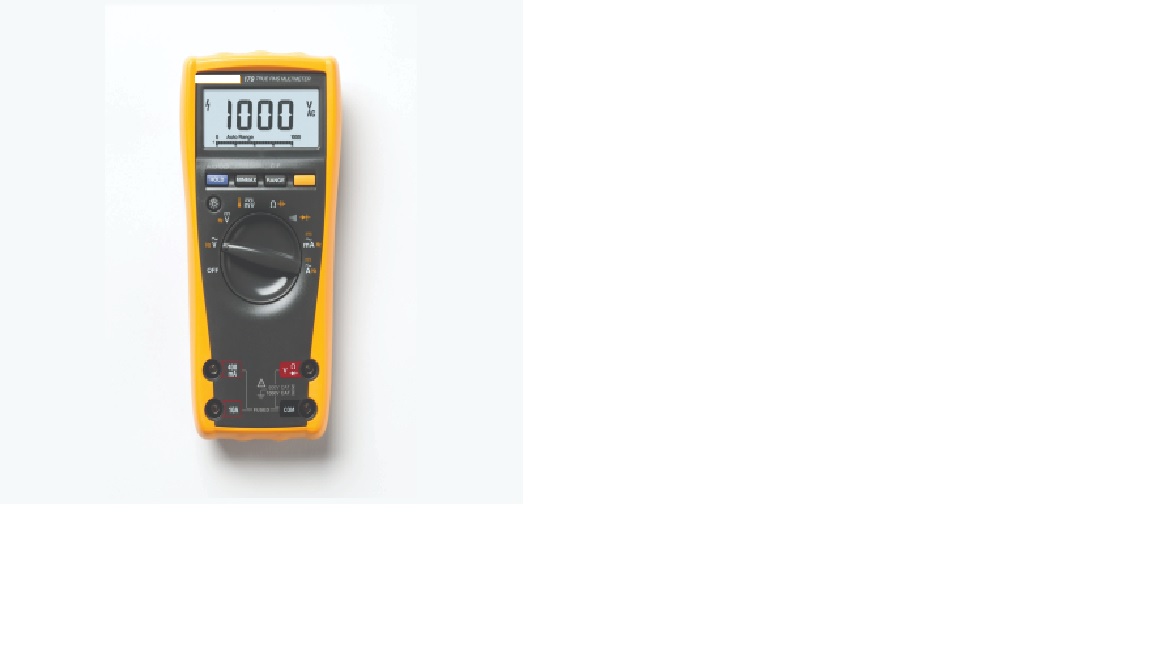

Digital Multimeter-10A LCD Display with 3 and 1/2 Digit

Product Specification

*True RMS digital Industrial Multimeter:Equivalent model to the specification is Fluke 87-V Identify complex signal problems fast Supports accurate measurements on VFDs using a low-pass filter Captures intermittent as fast as 250 µS with Peak CaptureVoltage DCMaximum voltage : 1000 VAccuracy : ±(0.05% + 1)

*Maximum resolution : 10 µVVoltage ACMaximum voltage : 1000 VAccuracy : ±(0.7% + 2) True RMSAC bandwidth : 20 kHz with low pass filter; 3 dB @ 1 kHz

*Maximum resolution : 0.1 mVCurrent DCMaximum amps : 10 A (20 A for 30 seconds maximum)Amps accuracy : ±(0.2% + 2)Maximum resolution : 0.01 µACurrent ACMaximum amps : 10 A (20 A for 30 seconds maximum)Amps accuracy : ±(1.0% + 2) True RMSMaximum resolution : 0.1 µAResistance

*Maximum resistance : 50 MΩAccuracy : ±(0.2% + 1)Maximum resolution : 0.1 ΩCapacitanceMaximum capacitance : 9,999 µFAccuracy :±(1% + 2)

*Maximum resolution : 0.01 nFFrequencyMaximum frequency : 200 kHzAccuracy : ±(0.005% + 1)Maximum resolution : 0.01 HzDuty cycleMaximum duty cycle :99.9%Accuracy :±(0.2% per kHz + 0.1%)

*Maximum resolution : 0.1%Temperature measurement : –200.0 °C – 1090 °C –328.0 °F – 1994.0 °F, excluding probe80 BK temperature probe : –40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greaterConductanceMaximum conductance : 60.00 nSAccuracy : ±(1.0% + 10)

*Maximum resolution : 0.01 nSDiodeRange : 3 VResolution : 1 mVAccuracy : ±(2% + 1)Duty cy

Application

A multimeter, commonly referred to as a multitester or volt-ohm-milliampmeter, is a type of electronic measuring device that integrates many measurement tasks into a single device. A digital multimeter has a graphical bar that depicts the measurement value in addition to a numeric display.

Digital multimeters are renowned for making analogue multimeters obsolete since they are physically more robust, more accurate, and less expensive. A multimeter is a portable tool that may be used for field service operations and simple problem finding. It may also be described as a device that measures something extremely accurately.
