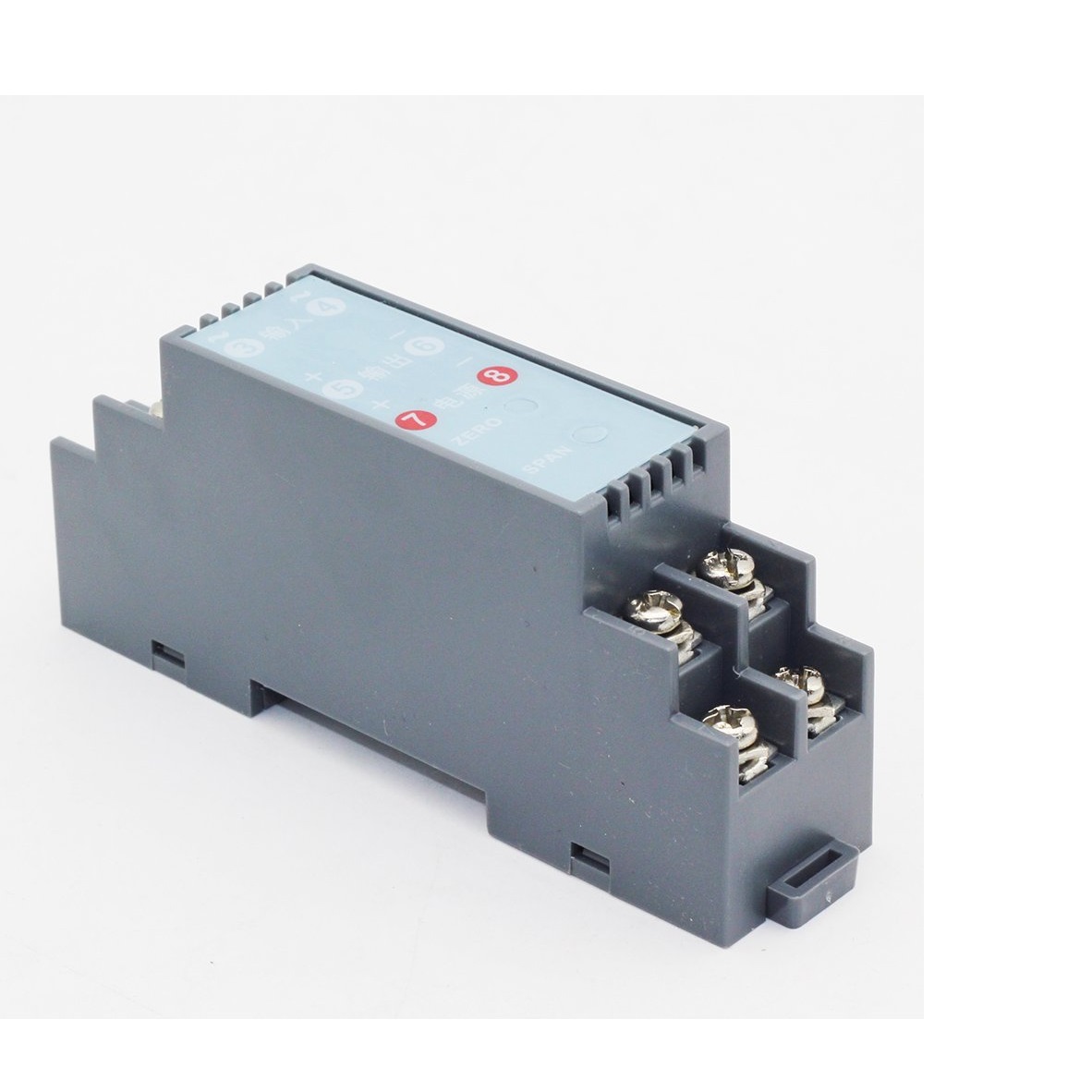

Current Transducer-I/P: 0-1AAC, OP: 4-20MA

Product Specification

*  Input Current Rating:0 to 1A AC

*  Current Range:0 to 1A AC

*  Output Current Rating 1 and 2:4 to 20 MA DC at 500 OHM Resistance

*   Aux Supply Voltage:240 V AC

*   Frequency:50 Hz, Accuracy:+/- 0.5% of Full Scale

* Response Time:300 MS

*  Isolation Between Input

*  Both Output and Supply Voltage:2 KV

*  Mounting:35 MM Din Rail

*  Enclosure Material:ABS Plastic

*  Other Requirement:Short Circuit and Over Current ProtectionNOTE: Warranty/Guarantee Certificate Along With Test Report To Accompany Supply

Application

A device known as a current transducer transforms current into a proportional electrical signal that meets industrial standards. Four main components make up a current transducer: a sensitive component, a conversion component, a conversion circuit, and a power circuit.
