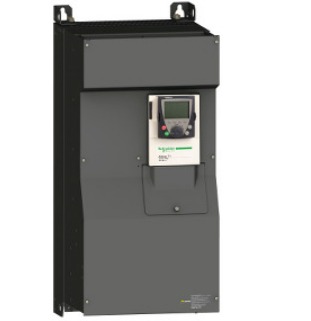

Continuous Output Current (HD)- 160KW; 314AMPS

Product Specification

• Continuous Output Current (HD)- 160KW
• 314AMPS
• Equivalent to Schneider Make and Model No
• GD200A-160G/185P-4
• Drive Power: 160KW
• Continuous Output Current (HD)- 314AMPS
• Switching Frequency- 2.5 KHz
• Ambient Temperature- 50 Degree Centigrade
• Height- 1190 mm
• Width- 440 mm, Depth- 377 mm
• Analog Input- 2
• Analog Output- 1
• Digital Input- 6
• Relay Output- 2
• Communication- Modbus RS- 485 CAN open
• Brake Chopper- Integrated
• Brake Resistor (DBR)- External 2.1 Ohm
• 75 KW.

Application

Continuous Output Current provides a constant output current, which reduces the output voltage ripple and lessens the current stress on the output capacitor. The converter that is being shown can work with a variety of output voltages.
