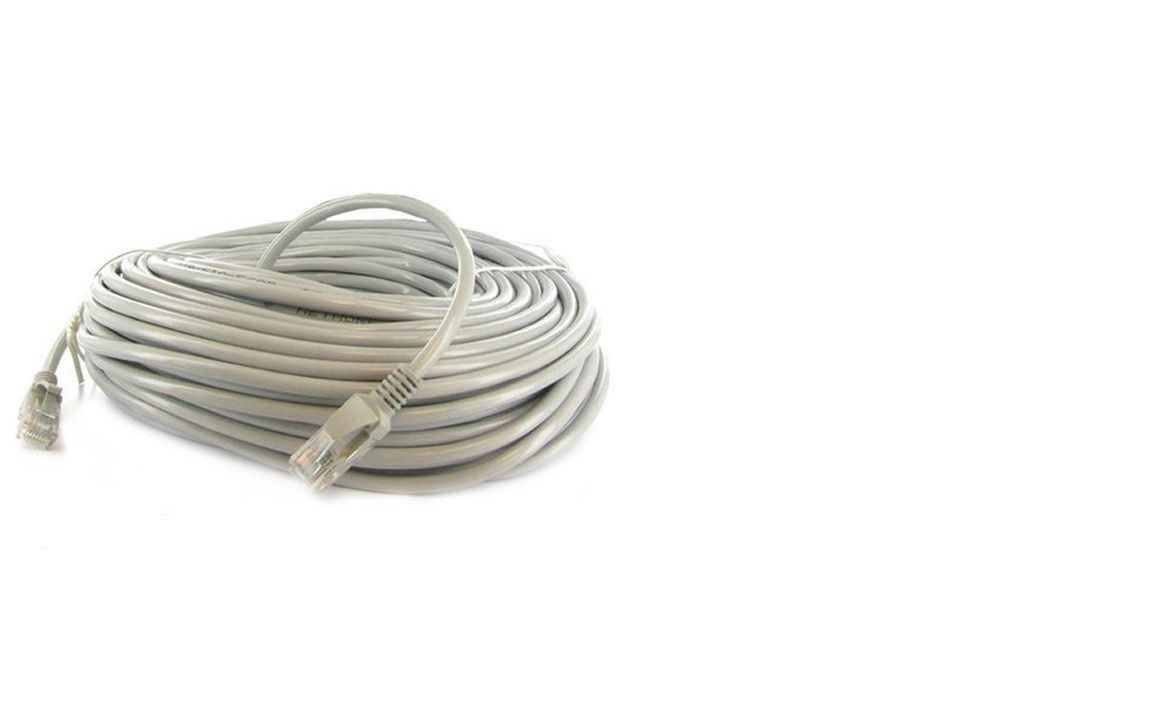

Cat-6 UTP (Unshielded Twisted Pair) Patch Cord-20Mtr.

Short Description:
Cat 6, an unshielded twisted-pair (UTP) design, emerged as an advancement of the UTP Cat 5e, which was formalized in 2001. The design of Cat 6 required more stringent precision in manufacturing, and this enabled reduced noise and crosstalk, allowing improved performance.
Manufacturer SCM-PRO
Place Of Origin India
Return Returnable Product
1 week
₹ 506.00
Old price: ₹ 556.60

GST @18% Inclusive Price: 597
This product has a minimum quantity of 3

Product Specification

*Detailed Specifications:Generic Name: 20Mtr.

* Cat-6 Patch Cord(LAN) CableWarranty: 1 YearSpecificationsGeneral

 *Brand –Equivalent to D-Link

* Type -Patch Cable• Cable Type - Cat6 1000 Mbps Speed

* UTP/STP - Unshielded Twisted Pair (UTP)

* Connector Material - Gold Plated

* Cable - Stranded Snagless

* Cable Frequency - 550 MHz

*Ethernet Transmission Standard -10Base-T

*100Base-TX, 1000Base-T

* Lifecycle - 750 Times Mate/Demate Cycle

* Part Number - Equivalent to NCB-C6UGRYR1-2

*Color - GreyMaterial

* Conductor - 0.51 MM Bare Copper 24AWG x 4 Pairs

* Jacket - PVC Jacket

* Insulation - HDPE Insulation

* Other Insulation Features - Insulation Resistance 35M Ohm (max)Supported Video Features

* Other Video Features - 550 MHz Broadband VideoTransmission Features

*Rating Temperature - 60 ° C

* Other Transmission Features - 1000Base-T

* 10GBASE-T (IEEE802.3)

* 100VG-AnyLan (IEEE 802.12)Additional Features

* Compliance - TIA/EIA 568C.2

* Other Features - Dielectric Withstanding Voltage: 500V AC, Insulation Resistance: 35M Ohm

* UL Application: 250V AC

* Contact Blade: Phosphor Bronze

Application

The unshielded in UTP refers to the lack of metallic shielding around the copper wires. By its very nature, the twisted-pair design helps minimize electronic interference by providing balanced signal transmission, making a physical shield unnecessary. In addition, different twist rates -- that is, varying the amount of twists between different pairs -- can also be used to reduce crosstalk. Because these protections come from how the wires are physically laid out, bending or stretching a UTP cable too much can damage the pairs and make interference more likely to occur.

Twisted pairs are color-coded to make it easy to identify each pair. In North America, one wire in a pair is identified by one of five colors: blue, orange, green, brown or slate (gray). This wire is paired with a wire from a different color group: white, red, black, yellow or violet. Typically, one wire in a pair is solid-colored, and the second is striped with the color of its mate -- e.g., a solid blue wire would be paired with a white-and-blue striped wire -- so they can be easily identified and matched.
