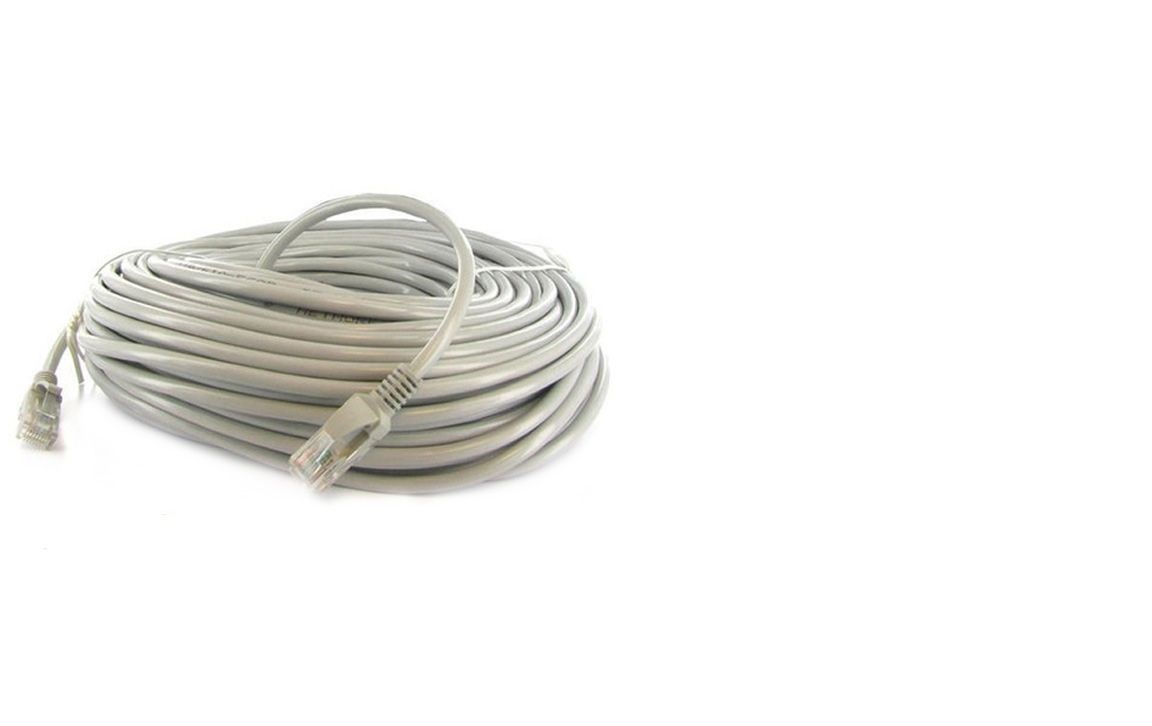

Cat-6 UTP (Unshielded Twisted Pair) Patch Cord-10Mtr.

Product Specification

• Detailed Specifications:Generic Name: 10Mtr.
• Cat-6 Patch Cord(LAN) CableWarranty: 1 Year
• SpecificationsGeneral
• Brand –Equivalent to D-Link
• Type -Patch Cable
• Cable Type - Cat6 1000 Mbps Speed
• UTP/STP - Unshielded Twisted Pair (UTP)
• Connector Material - Gold Plated
• Cable - Stranded Snagless
• Cable Frequency - 550 MHz
• Ethernet Transmission Standard -10Base-T
• 100Base-TX
• 1000Base-T
• Lifecycle - 750 Times Mate/Demate Cycle
• Part Number - Equivalent to NCB-C6UGRYR1-2
• Color - GreyMaterial
• Conductor - 0.51 MM Bare Copper 24AWG x 4 Pairs
• Jacket - PVC Jacket
• Insulation - HDPE Insulation
• Other Insulation Features - Insulation Resistance 35M Ohm (max)Supported Video Features
• Other Video Features - 550 MHz Broadband VideoTransmission Features
• Rating Temperature - 60 ° C
• Other Transmission Features - 1000Base-T
• 10GBASE-T (IEEE802.3)
• 100VG-AnyLan (IEEE 802.12)Additional Features
• Compliance - TIA/EIA 568C.2
• Other Features - Dielectric Withstanding Voltage: 500V AC
• Insulation Resistance: 35M Ohm,
• UL Application: 250V AC
• Contact Blade: Phosphor Bronze

Application

The unshielded in UTP refers to the lack of metallic shielding around the copper wires. By its very nature, the twisted-pair design helps minimize electronic interference by providing balanced signal transmission, making a physical shield unnecessary. In addition, different twist rates -- that is, varying the amount of twists between different pairs -- can also be used to reduce crosstalk. Because these protections come from how the wires are physically laid out, bending or stretching a UTP cable too much can damage the pairs and make interference more likely to occur.

Twisted pairs are color-coded to make it easy to identify each pair. In North America, one wire in a pair is identified by one of five colors: blue, orange, green, brown or slate (gray). This wire is paired with a wire from a different color group: white, red, black, yellow or violet. Typically, one wire in a pair is solid-colored, and the second is striped with the color of its mate -- e.g., a solid blue wire would be paired with a white-and-blue striped wire -- so they can be easily identified and matched.
