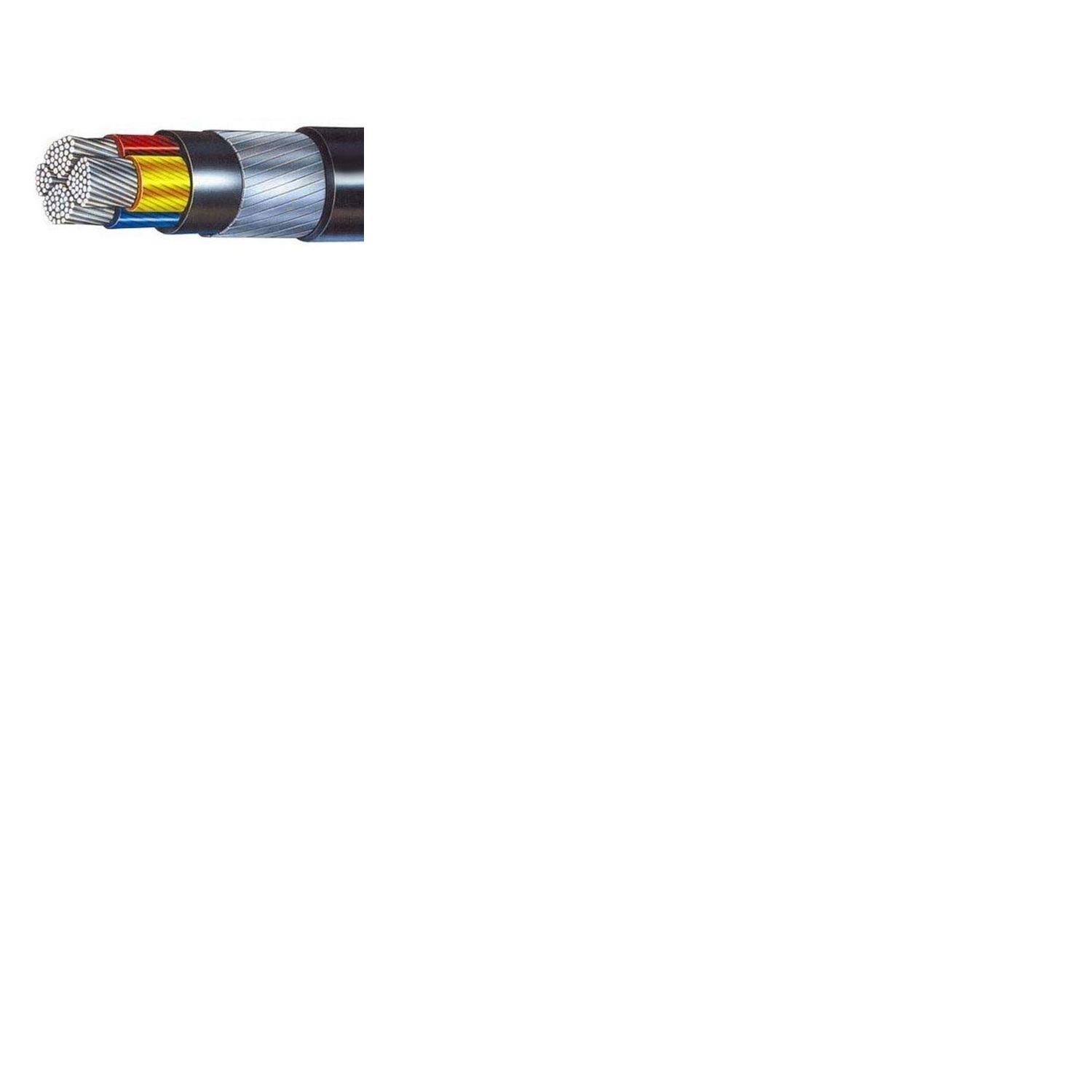

Cable Armored-1100V, 4 Core, 10MM2

Product Specification

• Conductor:Aluminium
• Insulation:Cross Linked Poly–Ethylene (XLPE)
• Outer Sheath Material:Poly–Vinyl Chloride (PVC) Compound
• Cable Type:XLPE Insulated and PVC Sheathed Cable with Stranded Aluminium Conductor Suitable for Rated Voltage at 1.1 KV Grade
• Armouring Type:Single Wire or Strip Armouring
• Core Identification Multi Core
• Cable :Up to 5 Core Coloured and Cores Above 5 are Number Embossed on the Cores at Interval of 2 Mtrs.
• No. of Core:4
• Cross Section Core:10MM2
• Certifications:Type Test Report from Central Government or NABL or ILAC Laboratory to Prove Conformity to the Specification for Minimum and Maximum Ratings.

Application

As the name implies, an armoured cable has added protective armour that helps protect the cable core. This is important in places where there could be accidental damage to the cable due to mechanical stress or impact. To put it in context, typically armoured cables would be used when you require the cable to be buried directly underground, for outdoor installation or in tunnels. There may be instances where the ground is opened up again, and in the process, a spade or mechanical excavator may hit the buried cable by accident. The armour in this case would help protect the cable conductor core from being exposed easily and prevent electric shocks and interruptions in power delivery.
