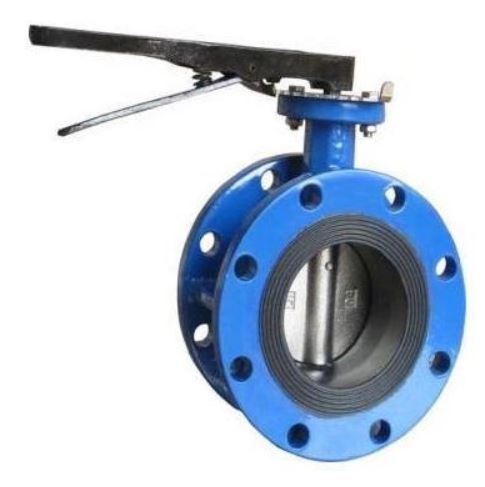

Butterfly Valve (Flanged)-100MM

Product Specification

* Size:100 MM, End Connection:Flanged, Pressure Class:Class 150

* MOC Disc:Stainless Steel (SS316)

* Working Temperature:80 Deg C

* Design Specification:ASME B16.5 with 2 Number of Companion Flange

* MOC Valve:Body/Bonnet/Cover: Stainless Steel (SS316)

* Valve and Disc Coating Material:Teflon/PTFE

* Medium:Sulphuric Acid Lye/Sulphuric Vapor

1.Test Certificate and Guarantee certificate to accompany supply

2. Permissible Makes- Dembla/Joshi Jampala/Cesare Bonetti/Weir Bdk/Tyco Sanmar/Audco India/Delval/Flowtech/Intervalve Poonwalla/Cessare Bonnetti Only

Application

Pipelines use butterfly valves, a class of rotational motion valves with a quarter-turn, to stop the flow of fluid. Where there is a lack of space, butterfly valves are used. Butterfly valves, in contrast to gate valves, can be utilised in both the completely open and fully closed positions as well as for throttling or regulating flow. Compared to a gate valve, a butterfly valve has a lower pressure loss.
