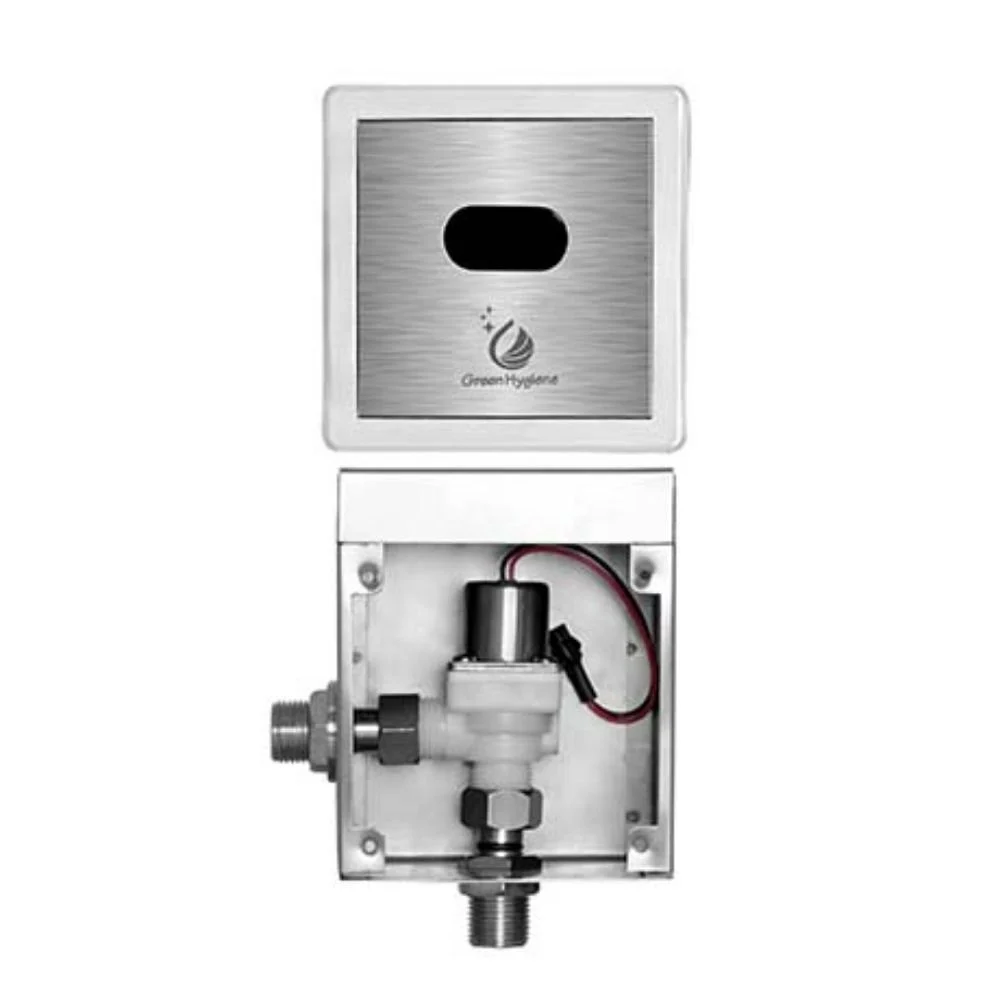

Automatic Concealed Sensor Flusher for Urinal (AC – DC) Avlb Finish : BRUSHED SS_Model : GH U 512 L Brushed SS

Product Specification

* GH U 512 L              : Automatic Concealed Sensor Flusher for Urinal (AC – DC)Avlb Finish : BRUSHED SS
* 6V DC- 4XAA Alkaline Batteries
* Powe r: 220V AC
* Operation   :    No-touch intelligent flush infrared sensor
* Sensing Range   : upto 500mm Adjustable
* Water Pressure   : 0.02 MPa-0.8Mpa *0.05 Mpa is minimum required pressure for decent flow of water
* Flush Time          :  7-8 Seconds Postflush
* Dia Inlet / Outlet : G1/2” (Dn15) orifice left to bottom
* Concealed Box Size  : W120xH120xD70mm
Plate dimension   : 120 mm X 120 mm
USP:INBUILT BRASS CONTROL TO ADJUST THE FLOW
OF WATER WITH RELIABLE SOLENOID VALVE (in “
L”type arrangement with flow control which is

Applications

The application of a urinal sensor flusher economical replacement model is mainly in public restrooms, such as in office buildings, airports, shopping malls, and other high-traffic areas. They are an excellent alternative to traditional manual flushers, which can be inefficient and unsanitary. These devices are easy to install and operate, reducing maintenance costs and improving overall hygiene.
